RULES FOR CONSTRUCTING A CANOPY.

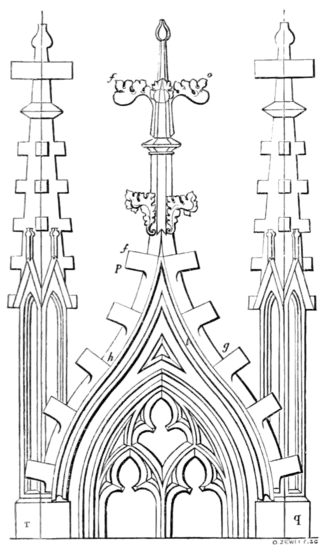

Archaeological Journal, Volume 4, 0039a.png

Fig. 4.

Archaeological Journal, Volume 4, 0039b.png

Fig. 5.

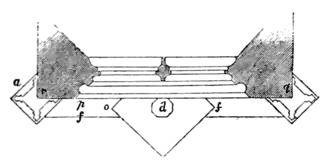

Archaeological Journal, Volume 4, 0039c.png

Fig. 3.

Archaeological Journal, Volume 4, 0039d.png

Fig. 6.

The strictly geometrical character of all these drawings is sufficiently evident, but figure 1 of the plans for the canopy is especially remarkable for the clever and ingenious manner in which all the varied parts are worked out on one diagram: this makes it look rather confused at first sight, but on a careful examination, the whole may be clearly made out. After this the others are all simple and easy to understand.
