THE PYROPHONE.
447

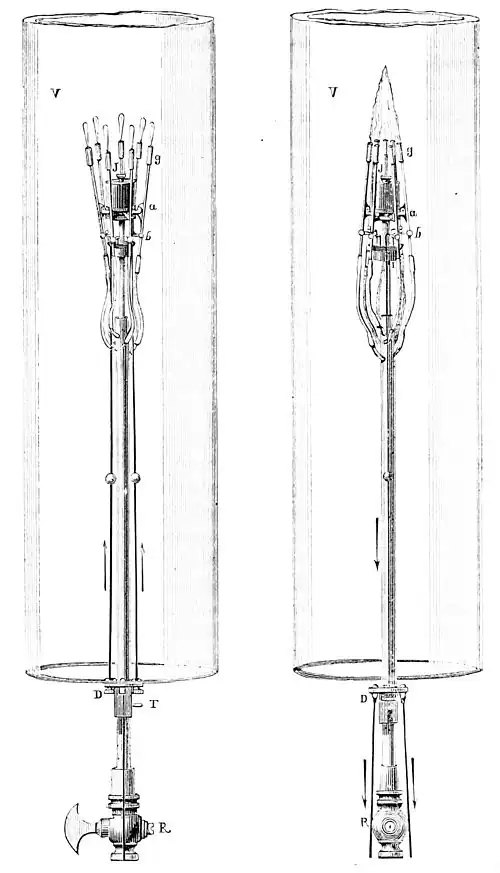

Fig. 1.—Tube with Singing-Flames showing Mechanism by which the Gas-Jets are made to diverge, and thus give rise to the Sound. Fig. 2.—Same, with Flames united, when no Sound is produced.
